Power Distribution
LEX Products power distribution equipment — racks, spider boxes, feeder cables, breakouts & GFCI stringers. From 20A to 1200A capacity for events, construction, and infrastructure.
1200A
Max Capacity
20A–1200A
Range
LEX
Products
Distribution Boxes
Power Distribution Racks & Boxes
LEX Products

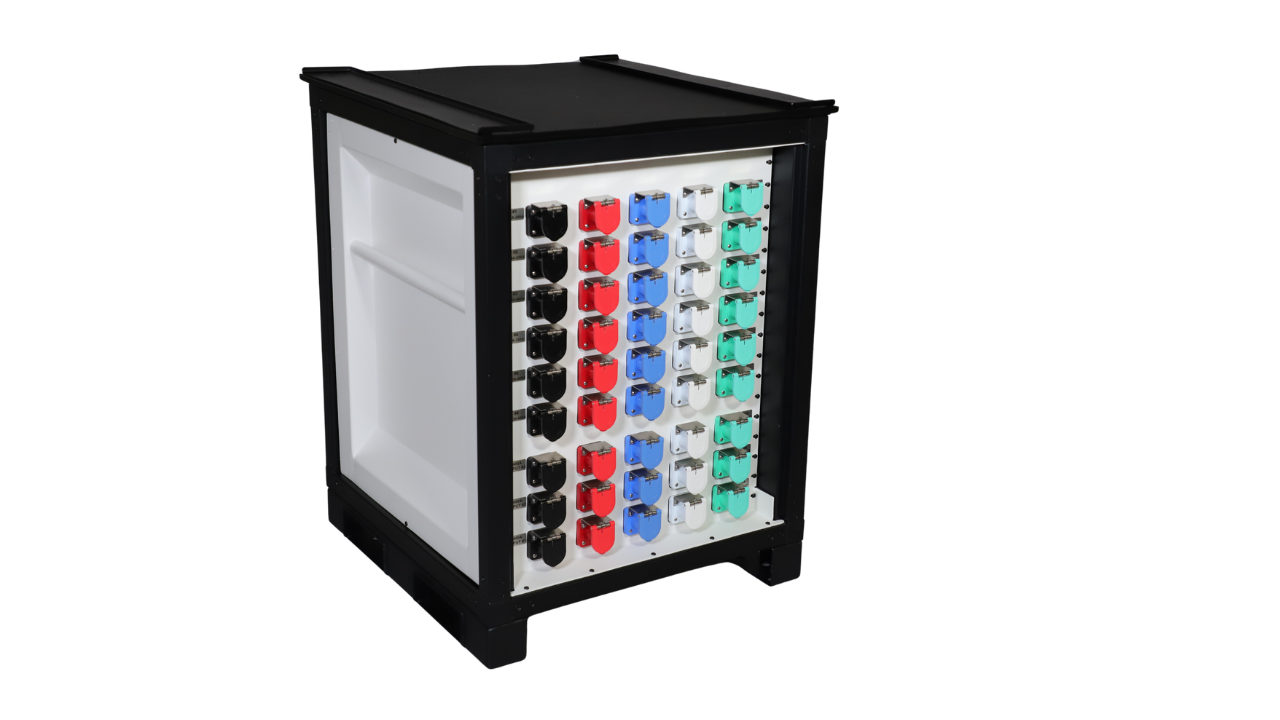

1200A PowerRACK
Outdoor 3-Phase Power Distribution Rack
The LEX 1200A PowerRACK is a NEMA 3R outdoor-rated power distribution rack with (3) 400A cam-type inputs. Designed for large-scale events, construction, and infrastructure requiring centralized power distribution.
1200A
Capacity
600Y/347 VAC
Voltage
3x 400A
Cam Inputs
Type 3R
Weather Rating
cULus
Listed
LEX Products

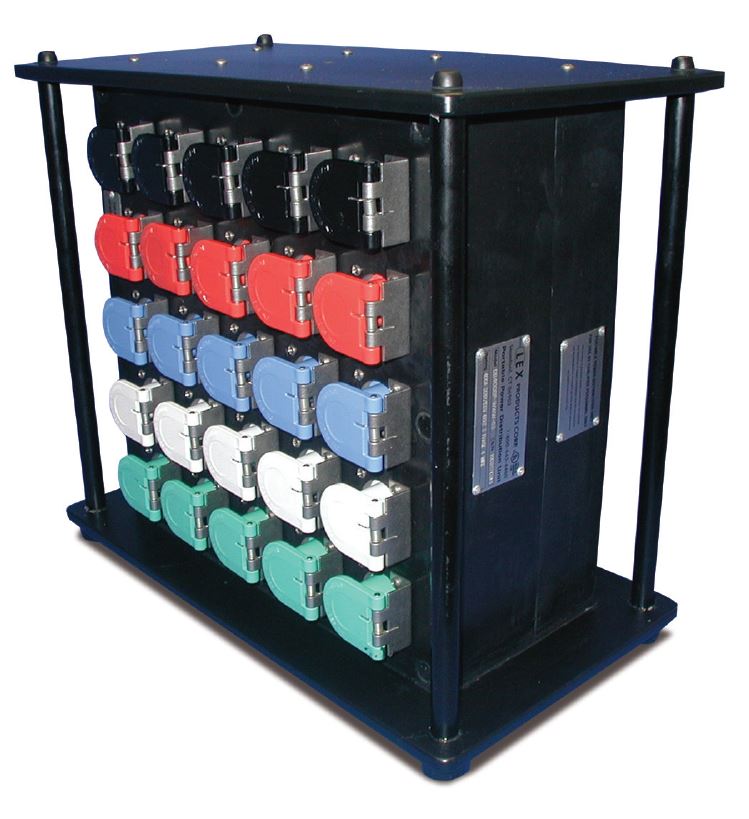

400A Cam Spider Box
3-Phase Cam-Type Distribution Box
The LEX 400A Spider Box distributes 3-phase power from a single 400A cam-type input to 5 output sets. Molded rubber construction, 56 lbs, NEMA 3R rated.
400A
Capacity
120/208Y VAC
Voltage
5 Sets
Outputs
56 lbs
Weight
NEMA 3R
Rating
LEX Products

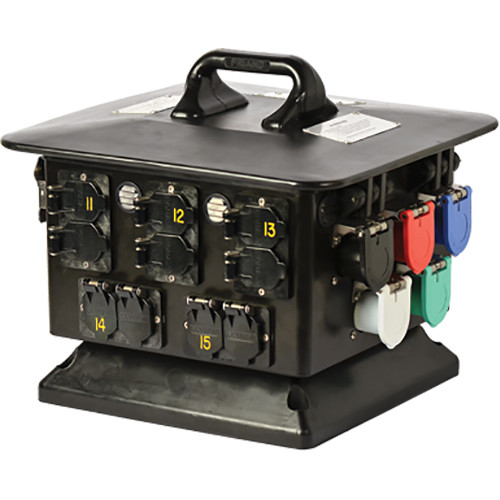

DB100 Pagoda
100A Portable Distribution Box
The DB100 Pagoda provides 15 NEMA 5-20 duplex outlets from a 100A input. Individual 20A breakers per circuit. Stackable for transport and storage.
100A
Input
120/208Y VAC
Voltage
15 Outlets
NEMA 5-20
20A
Per Circuit
Stackable
Design
Feeder Cables
SC Feeder Cable Sets
LEX Products
4/0 SC Feeder Cable
400A / 600V / 4/0 AWG — Set of 5 Color-Coded Cables
400A-rated feeder cable set with 5 color-coded 4/0 AWG conductors. Thermoset jacket for durability. Available in 10, 25, 50, and 100 ft lengths.
400A
Rating
600V
Max Voltage
4/0 AWG
Wire Gauge
Set of 5
Cables
LEX Products
2/0 SC Feeder Cable
200A / 600V / 2/0 AWG — Set of 5 Cables
200A-rated feeder cable set with 5 conductors in 2/0 AWG. Same durable thermoset construction as the 4/0 set. Mid-range capacity for sub-distribution runs.
200A
Rating
600V
Max Voltage
2/0 AWG
Wire Gauge
Set of 5
Cables
LEX Products
#2 SC Feeder Cable
100A / 600V / #2 AWG — Banded 5-Wire Set
100A-rated feeder cable with banded 5-wire construction in #2 AWG. Compact form factor for lighter distribution runs and tight spaces.
100A
Rating
600V
Max Voltage
#2 AWG
Wire Gauge
Banded
5-Wire
Breakouts & Accessories
Breakouts & Accessories
LEX Products

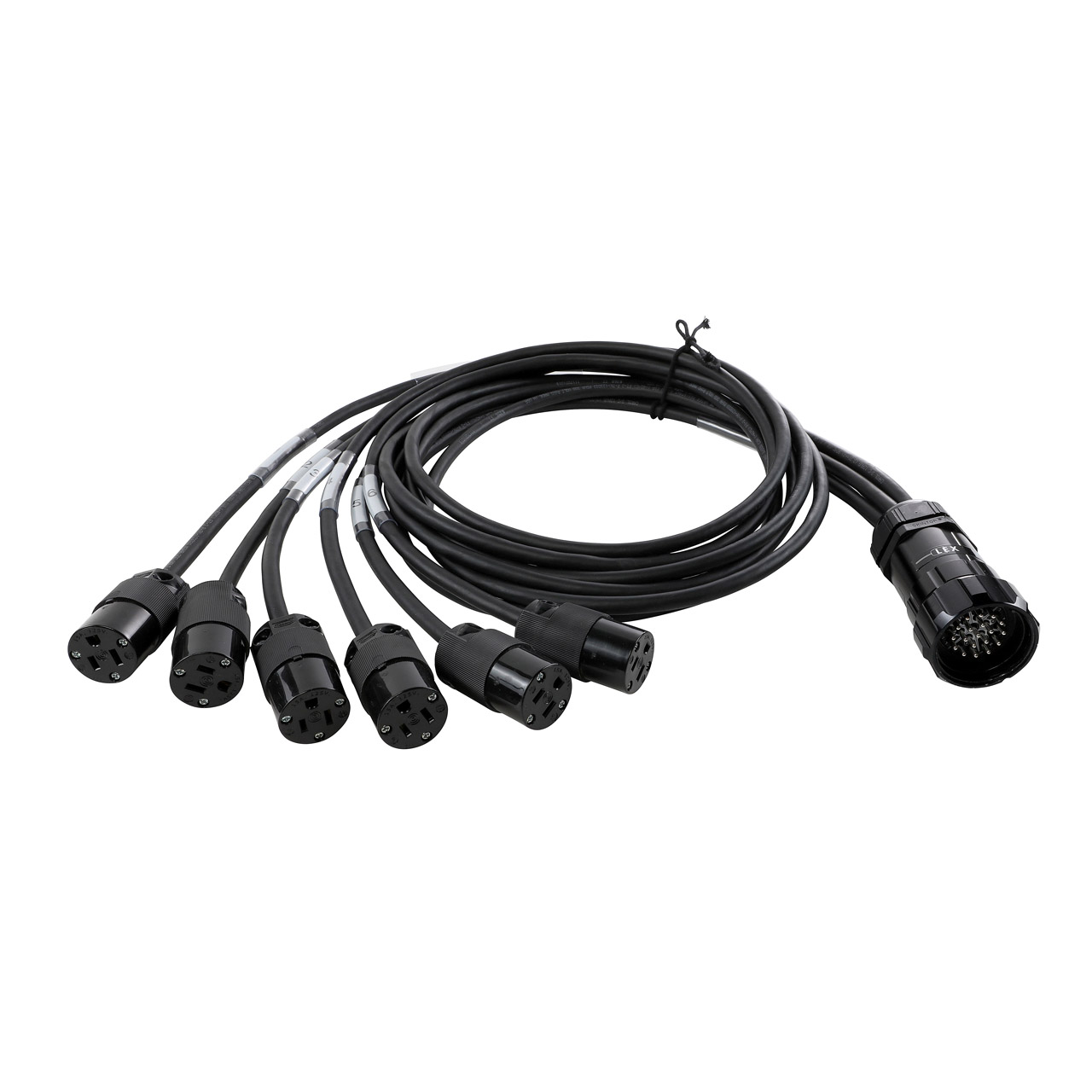

EverGrip Breakout
19-Pin LSC to 6x NEMA 5-15 Edison — 20A / 125V
The EverGrip Breakout converts a 19-pin LSC connection to 6 NEMA 5-15 Edison outlets. Anti-rotation EverGrip connectors with silver-plated brass contacts.
20A
Rating
125V
Voltage
6 Outlets
NEMA 5-15
19-Pin
Input
LEX Products

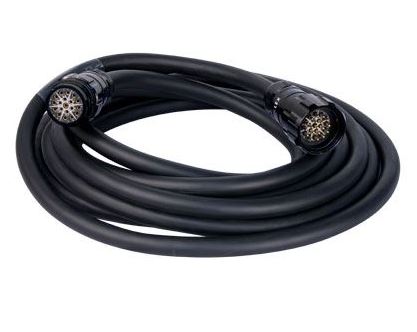

Multi-Flex 19-Pin
20A Multi-Conductor Extension Cable — 12 AWG / 14 Conductor
The Multi-Flex is a 19-pin multi-conductor extension cable with TPR jacket. Available in 10, 50, 75, 100, and 125 ft lengths for flexible run distances.
20A
Rating
12 AWG
Wire
14
Conductors
TPR
Jacket
LEX Products

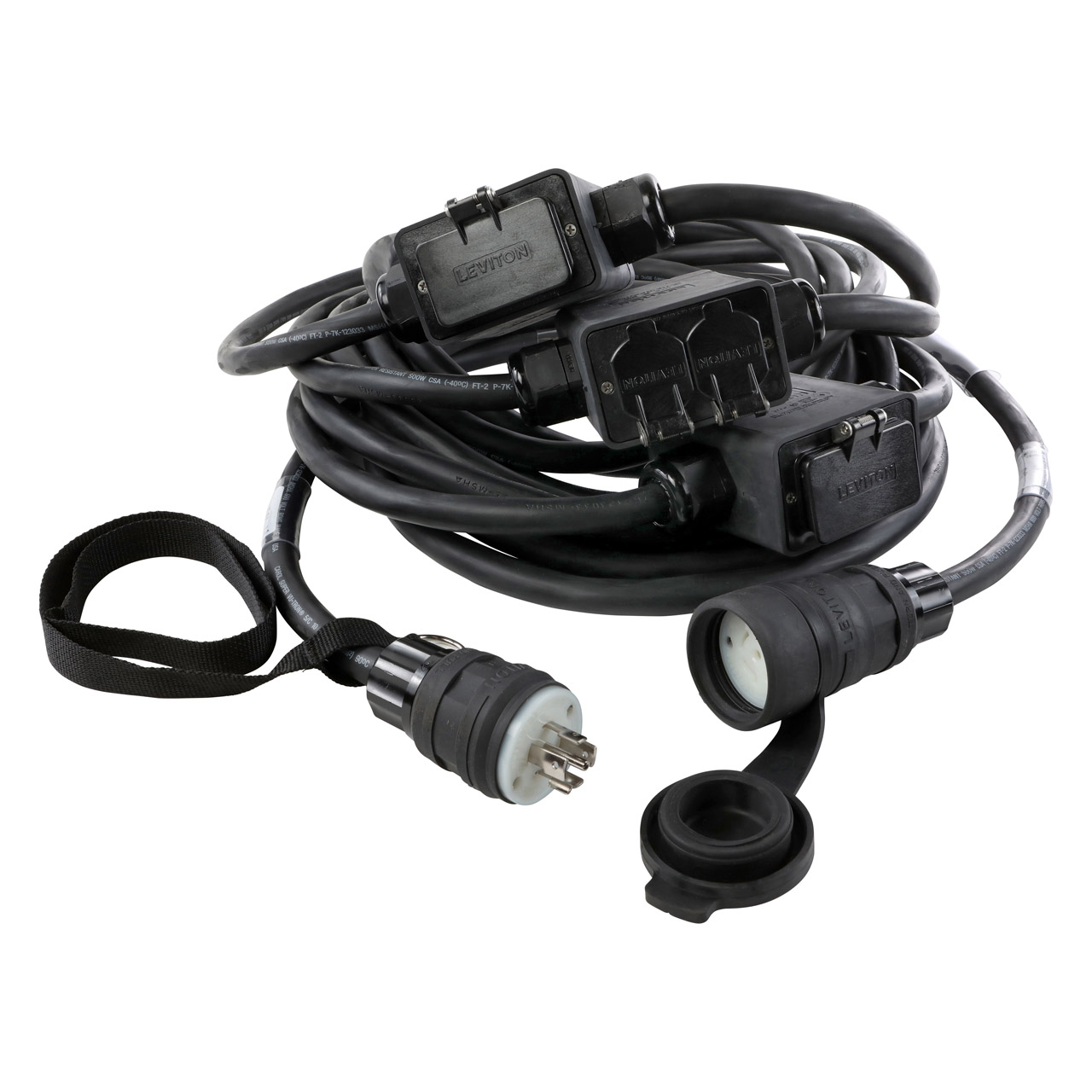

GFCI Quad Stringer
20A 3-Phase / 50ft Cable / 3 GFCI Quad Boxes
The LEX GFCI Quad Stringer is a 50ft cable with 3 GFCI quad boxes providing 6 duplex outlets. Daisy-chain capable for extended runs. Molded rubber, 24 lbs.
20A
Rating
50 ft
Cable Length
3 Boxes
GFCI Quad
6 Outlets
Duplex
24 lbs
Weight
Request a Power Distribution Quote
Tell us about your power distribution requirements and we'll get back to you within 1 business day. Or call 1-800-USA-TENT.
